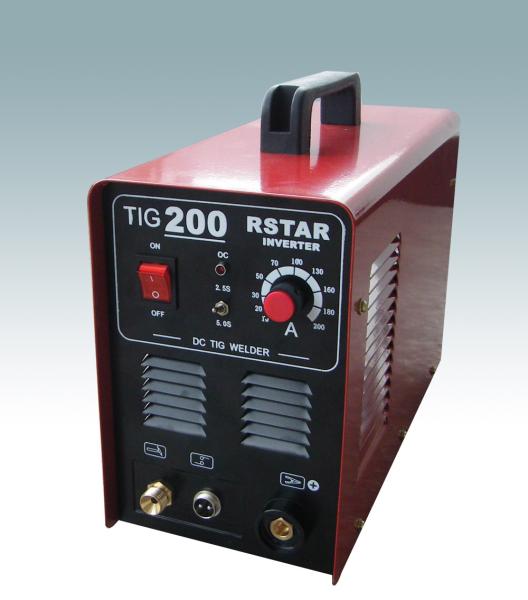

    Mini Inverter DC TIG Welder

    Ask Lasest Price
    Brand Name : RSTAR
    Model Number : WS
    Certification : CE
    Delivery Time : 10-20
    Supply Ability : 2000 sets per month
    • Product Details
    • Company Profile

    Mini Inverter DC TIG Welder


    1. Advanced inverter technology, high working frequency, reduced size and weight, easy to carry.

    2. HF pressure increasing arc initiation and pulsation thermal arc initiation design, excellent arc initiation performance, ample welding current, super cost/performance ratio.

    3. Unique over pressure protection design, voltage up to 380V will not damage the machine.

    4. Unique output characteristics design, more suitable for filter wire welding, excellent weld appearance.

    5. Wide working voltage range, strong adaptability to electricity network, high duty cycle, more suitable for factory continuous operation.

    6. Simple structure, good process, reliable and durable, easy for maintenance.

    7. Be able to weld carbon steel, stainless steel, copper and titanor metal, etc.,

    8. Complete accessories: welding torch, welding cable,earth clamp, carton box

    Main technical parameters

    TIG-160

    TIG-200

    TIG250

    Input power voltage (v):

    AC 220+10%

    AC 220+10%

    AC 220+10%

    Frequency (HZ):

    100

    100

    100

    Rate input power capacity (KVA)

    4.0

    5.5

    7.0

    No-load voltage (V):

    43

    43

    43

    Output current range (A):

    5-160

    5-200

    5-250

    Rated output voltage (V):

    14

    18

    22

    Duty cycle (%):

    60

    60

    60

    Efficiency (%):

    85

    85

    85

    Insulation class:

    F

    F

    F

    Weight (kg):

    8.5

    9.5

    10.5

    Measurement (cm):

    43 x 21 x 36

    43 x 21 x 36

    43 x 21 x 36

    Protection class :

    IP21

    IP21

    IP21
